SSWW STEAM ROOM /STEAM CABIN MODEL BU615
SSWW STEAM ROOM /STEAM CABIN MODEL BU615
Model: BU615
Technical Parameters
| Glass color | Transparent |
| Glass door thickness | 6mm |
| Aluminum profile color | Dark Brushed |
| Bottom tray color / skirt apron | White / Two-sides & double-skirt |
| Door style | Two-direction opening & sliding door |
| Package quantity | 3 |
| Total package volume | 2.532m³ |
| Flow rate of drainer | 25L/ min |
| Package way | poly bag+ carton + wooden board |
| Transportation Weight(Gross Weight) | 320kgs |
| 20 GP / 40GP / 40HQ loading capacity | 11sets /22sets /24sets |
Features & Functions
Steam room with acrylic bathtub
Pneumatic control bathtub with hydro massage
Alarm system
Glass shelf
Ionizer
FM radio
Fan
Folding acrylic stool
Time /temperature setting
Roof lighting & colorful LED light
Bluetooth phone answering & music player
Top shower & hand shower & back nozzles & side nozzles
Hot/cold exchange mixer
Steam generator cleaning
Double steam outlet
Aluminium door handle

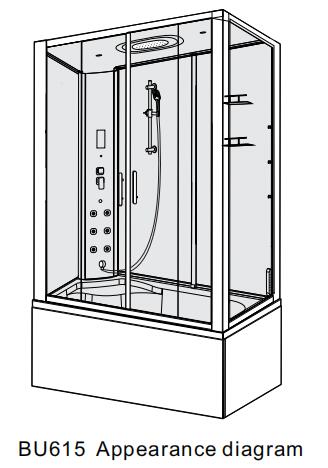

BU615 Part name
1. Top cover
2. Top gush
3.Silicone pad
4.Left fifixed glass
5.Dual-layer rack
6.Ozone
7.Side nozzle
8.Control panel
9.Shipping mark/temperature sensor
10.Function conversion switch
11.Hot/Cold water conversion switch
12.Control panel
13.Back nozzle
14.Steam box
15.Bath
16.Fan horn cover
17.FN007 connected aluminum
18.Lift shower support
19.Shower head
20.Shower head water supply connection bas
The picture shows a right side spare part;
Please refer it symmetrical ly if you choose a left side part.
21.Left silicone pad
22.Top guide aluminum LC368
23.Left aluminum LC396
24.Left & Front fixed glass
25.Left glass door
26.Handle
27.Down guide aluminum LC389
28.Top guide aluminum LC368
29.Righ silicone pad
30.Right glass door
31.Right & Front fixed glass
32.Corner aluminum LC394
33.Right fixed glass
34.Right aluminum LC396
35.Down guide aluminum LC389
1.Sewage nozzle
2.Water feedback net
3.Bath pipeline cleaning
4.Air switch
5.Air conditioner
6.Pillow
7.Small nozzle
8.Light
9.Water drainage device(Waterfall inlet)
The picture shows a right side spare part;
Please refer it symmetrical ly if you choose a left side part.
BU615 water and electricity utilities installation
The zero line, live line, and grounding line of indoor power sockets have to be in strict compliance with standard configurations.
Prior to connecting hot and cold water pipes, please connect the corresponding pipes on the backplane, and secure them.
The picture shows a right side spare part;
Please refer it symmetrical ly if you choose a left side part. Rated parameters for power sockets: 220V-240V~50Hz/60Hz. Power socket cords: steam room >4mm2 , bathtub >2.5mm2
Remarks：Earth Leakage Protector 32 ampere should be installed on power supply wire.
