SSWW STEAM ROOM BU601 900×900MM
SSWW STEAM ROOM BU601 900×900MM
Model: BU601
Technical Parameters
| Glass color | Transparent |
| Glass door thickness | 6mm |
| Aluminum profile color | Dark Brushed |
| Bottom tray color / skirt apron | White / One-side & single-apron |
| Door style | Two-direction opening & sliding door |
| Total rated power/Supply Current | 3.1kw/13.5A |
| Flow rate of drainer | 25L/ min |
| Package quantity | 3 |
| Total package volume | 1.306m³ |
| Package way | poly bag+ carton + wooden board |
| Gross Weight | 200kgs |
| 20 GP / 40GP / 40HQ loading capacity | 18sets /38sets /42sets |
Standard function
Steam room with acrylic bottom tray
Alarm system
Glass shelf
Ionizer
FM radio
Fan
Folding acrylic stool
Time /temperature setting
Roof lighting & colorful LED light
Bluetooth phone answering & music player
Top shower & hand shower & back nozzles & side nozzles
Hot/cold exchange mixer
Steam generator cleaning
Double steam outlet
Aluminium door handle
Wood-plastic floor (optional)

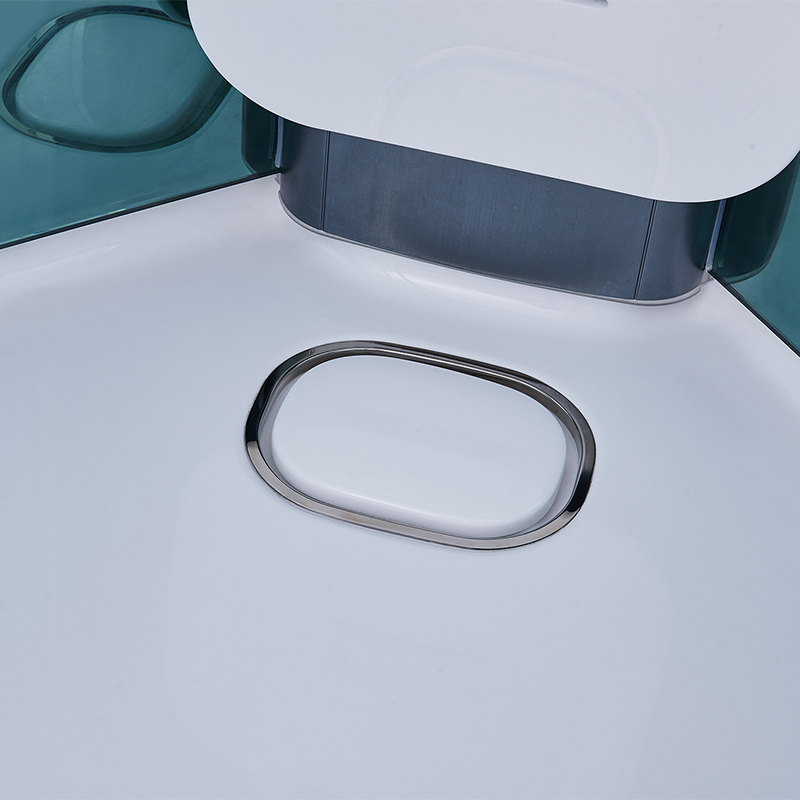

BU601 Drainer
BU601 Drainer
BU601 Foldable stool (1)
BU601 Foldable stool (2)
BU601 Glass shelf
BU601 Hand shower
BU601 Handle
BU601 Side nozzles
BU601 steam box
BU601
BU601 Led top light (1)
BU601 Led top light (2)
BU601 Led top light (3)
BU601 Led top light (4)
BU601 Led top light (5)
BU601 Led top light (6)
Structural illustration of BU601
1. Top gush
2. Loudspeaker
3.Top cover
4.Left-rubber mat
5.Shower
6.Lift shower support
7.Big eight-hole shower head
8.1.5m chrome chain without sleeve
9.Shower head water supply connection box
10.Medical bathing box
11.Top light
12.Fan
13 Riah-rubber mat
14.Rubber mat
15.Dual-layer rack
16.Control panel
17.Shipping mark/temperature sensor
18 Single handle
19.Cleaning opening
20 Nozzle
21.Foldable desk
22.Shower tray
23.Glass door
24.Fixed glass door
25.Handle
Water and supply installation illustration of BU601
The zero line . live line , and grounding line of indoor power sockets have to be in strictcompliance with standard configurations.
Prior to connecting hot and cold water pipes , please connect the corresponding pipeson the backplane , and secure them.
Suggestion
1.Branch circuit power wire diameter of Steam room should be not smaller than 1 2AWG.
2.User should install a 32A leakage protection switch on the branch wire for steam room power supply.
Product advantages
standard package
