SWW STEAM ROOM /STEAM CABIN MODEL BU621

SWW STEAM ROOM /STEAM CABIN MODEL BU621

Model: BU621

Basic Information

  • Typ: Steam room
  • Dimension: 1200(L) ×800(W) ×2180(H) mm
  • Direction: Left/ Right
  • Control panel: S163BTC-A control panel
  • Shape: Rectangular
  • Seating persons: 1
  • Product Detail

    Product Tags

    Technical Parameters

    Glass color Transparent
    Glass door thickness 6mm
    Aluminum profile color Dark Brushed
    Bottom tray color / skirt apron White / Two-sides & double-skirt
    Total rated power/Supply Current 3.1kw/ 13.5A
    Door style Two-direction opening & sliding door
    Flow rate of drainer  25L/ min
    Package quantity 2
    Total package volume 1.515m³
    Package way poly bag+ carton + wooden board
     Transportation Weight(Gross Weight) 213kgs
    20 GP / 40GP / 40HQ loading capacity 16sets /34sets /42sets

    Features & Functions

    Steam room with acrylic bottom tray

    Alarm system

    Glass shelf

    Ionizer

    FM radio

    Fan

    Folding acrylic stool

    Time /temperature setting

    Roof lighting & colorful LED light

    Bluetooth phone answering & music player

    Top shower & hand shower & back nozzles & side nozzles

    Hot/cold exchange mixer

    Steam generator cleaning

    Double steam outlet

    Aluminium door handle

    Wood-plastic floor (optional)

    STEAM CABIN MODEL BU621

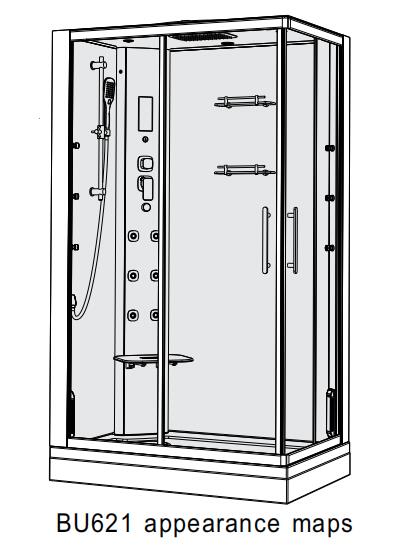

    BU621 Structure Diagram

    1.Top spray
    2.Top cover
    3.Horn
    4.Ozone
    5.Shower head
    6.Lift shower support
    7.Function conversion switch
    8.Hot / Cold water switch
    9.Cleaning cover
    10.Back nozzle
    11.Shower chain
    12.Shower head water supply connection bas
    13.Acrylic stool
    14.Left fixed glass
    15.Water drainage device
    16.Bottom tray
    17.Fan

    18.Top light
    19.Dual-layer rack
    20.Control panel
    21.Tmperature sensor
    22.Right fixed glass
    23.Upper guide aluminum
    24.Front & fixed glass
    25.Front glass door
    26.Side nozzle
    27.Left column aluminum
    28.Steam box
    29.Down quide aluminum
    30.Right & fixed glass
    31.Right glass door
    32.Handle
    33.Right column aluminum

    BU621 Structure Diagram
    STEAM CABIN MODEL BU621

    The picture shows a left side spare part;

    Please refer it symmetrical ly if you choose a right side part.

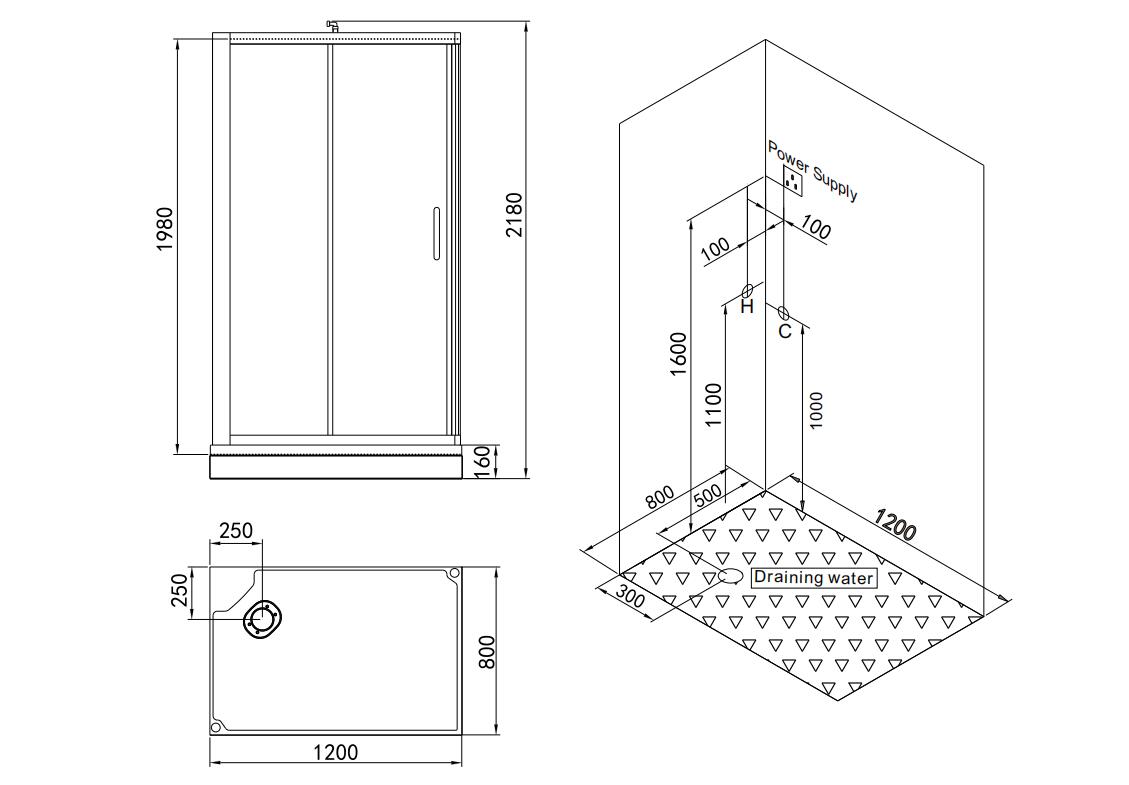

    BU621 water and electricity installation diagram

    The zero line , live line , and grounding line of indoor power sockets have to be in strictcompliance with standard configurations

    Prior to connecting hot and cold water pipes , please connect the corresponding pipeson the backplane , and secure them

    BU621 water and electricity installation diagram

    The picture shows a left side spare part;

    Please refer it symmetrical ly if you choose a right side part.

    Rated parameters for power sockets: 220V-240V~50Hz/60Hz.power socket cords:>2.5mm2.

    Remarks:Earth Leakage Protector 32 ampere should be installed on power supply wire.
